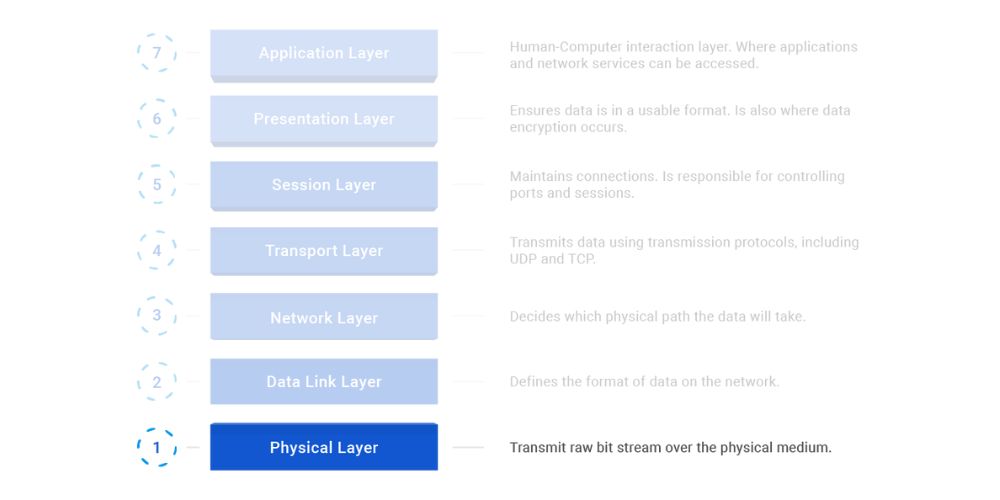

What is the OSI Physical Layer? The OSI physical layer, the first and lowest layer in the OSI model, serves as the fundamental base upon which data communication standards and technologies are built. It deals with the physical connection between devices and the transmission of raw binary data over a networking medium, be it copper wires, fiber optics, or wireless transmission. This layer's responsibilities are critical in setting the groundwork for the networking framework, ensuring that higher-level layers can perform their tasks effectively. What is the OSI Model? The OSI Model organizes network architecture into seven layers, emphasizing the physical layer as the foundation for data transmission. It handles the raw bits over hardware, setting the stage for all upper-layer communications. Discover more about the OSI Model here. What is the Role of the OSI Physical Layer? The primary role of the OSI physical layer is to convert the digital bits from the data link layer into electrical, optical, or radio signals that can be transmitted over the respective communication medium. It encompasses various standards and specifications, including voltage levels, pin layout, cabling, and physical topologies. By handling the specifics of signal transmission and reception, the physical layer enables the seamless flow of data across the network infrastructure, laying the foundation for network connectivity and communication. Physical Layer Protocols Examples The physical layer's role in the OSI model is critical for the actual transmission of data over a network. Here’s how specific technologies like CAN Bus system and its counterparts implement the physical layer's functions: CAN Bus Implementation: At the physical layer, CAN Bus protocol translates digital commands into electrical signals that are robust enough to withstand the harsh conditions commonly found in automotive environments. It uses a two-wire differential signaling system to minimize interference from electrical noise, a common challenge in vehicles. This ensures reliable data transmission between ECUs, sensors, and actuators. LIN (Local Interconnect Network): LIN implements the physical layer by using a single wire for data transmission, which is cost-effective for managing low-speed communications in vehicles. This simplicity aids in connecting non-critical components while ensuring data integrity through checksums and limited but effective error-checking mechanisms. FlexRay: At the physical layer, FlexRay enhances robustness and data integrity through a dual-channel approach, allowing for higher data rates and fault-tolerant communication. This is particularly important for safety-critical systems in vehicles that require deterministic behavior and redundancy. Automotive Ethernet: In implementing the physical layer, Automotive Ethernet utilizes twisted pair or optical fiber to transmit high-bandwidth data within vehicles. This technology supports faster data rates and reduces the risk of electromagnetic interference, crucial for modern automotive applications. Each of these technologies has tailored its physical layer implementation to meet specific needs — CAN Bus and FlexRay for critical vehicle functions, LIN for simpler control tasks, and Automotive Ethernet for high-bandwidth transmissions, like for the in-vehicle infotainment. This adaptability underscores the physical layer's importance in ensuring data is accurately and efficiently transmitted across different network types and conditions. Conclusion The implementation of the physical layer in networking protocols, especially in specialized environments like automotive networks, underscores the foundational role this layer plays in the OSI model. Technologies such as CAN Bus, LIN, FlexRay, and MOST not only exemplify how physical layer functions are adapted to meet specific operational requirements but also highlight the critical importance of reliable data transmission mechanisms. By ensuring robust, efficient, and interference-resistant communication, these physical layer implementations enable the seamless integration and operation of complex vehicle systems, from basic controls to advanced driver-assistance systems and multimedia networks. Understanding these implementations provides valuable insights into the complexities of network design and the innovative solutions developed to address them. Unleash Creativity with AutoPi for Developers Curious how AutoPi can elevate your development projects? See How
